Troubleshooting Guide: GPS & Ford Pass Connectivity Issues

Troubleshooting Guide: GPS & Ford Pass Connectivity Issues

Overview

If you are experiencing issues with your GPS or Ford Pass systems, one common culprit is a loose or disconnected cable. Specifically, please ensure that the cable with the red connector attached to the gray cable is firmly connected. This connection is critical for maintaining proper system operation.

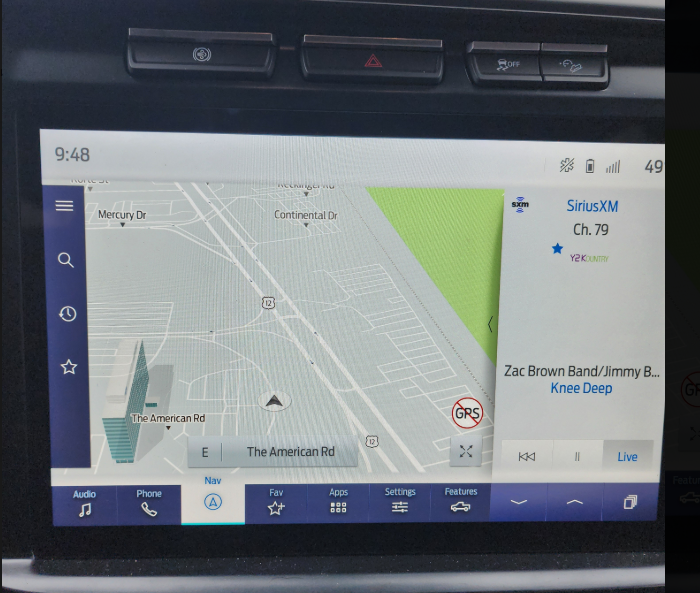

GPS issue picture.


Red cable culprit


Full APIM picture

Port

Step-by-Step Instructions

1. Safety First

  • Turn Off the Vehicle: Ensure the ignition is off before starting any work.

  • Remove Keys/Disconnect Battery: For added safety during the inspection, remove your keys or disconnect the battery if performing extended checks.

  • Work in a Safe Area: Park the vehicle on a flat, secure surface away from traffic.

2. Locate the Connector

  • Visual Identification: Find the cable with the distinctive red connector attached to a gray cable. Refer to your system’s diagram if needed.

  • Positioning: This cable is generally mounted near the module controlling your GPS/Ford Pass systems.

3. Inspect the Connection

  • Confirm Seating: Check that the red connector is securely seated in its port. There should be no visible gaps or looseness.

  • Look for Damage: Examine the cable and port for signs of wear, corrosion, or debris. If necessary, use an approved electrical contact cleaner to remove any dirt.

4. Reconnect the Cable

  • Disconnect if Needed: Gently unplug the connector if it’s not properly seated.

  • Firmly Reinsert: Reinsert the connector carefully into its slot until you feel it lock or click in place. Avoid forcing the connector; it should slide in neatly.

  • Double-Check: Confirm that the connector is secured and correctly aligned.

5. Restart & Verify

  • Power On: Turn your vehicle or the corresponding system back on.

  • Check Functionality: Verify that your GPS signal and Ford Pass connectivity have been restored. If the issues persist, try the reconnection procedure once more.

6. Need Additional Assistance?

If after following these steps you continue to experience issues, please reach out directly for help:

Our dedicated team is available to provide further diagnostics and help resolve any persistent problems.
