UAV Software Updates

The Uconnect 4 radios, like all FCA radio systems, operate the best when at the latest software version.

The software updates are slightly complicated to explain, as some are specific to the manufacture of the vehicle, but we've compiled them in an easy to follow path depending on what vehicle you drive.

These are the updates as they are from Uconnect, they are unaltered and should install just fine unless there's something internally wrong to the radio. If the update fails and hangs on a white screen saying ERROR (And then some kind of number, such as 20) then there is a component in the radio that is failing to be updated and the radio may need to come in for repair. With that being said, installing the software updates provided are to be performed at your own risk. The radio was designed with a failsafe for the time the radio fails the update. It will go into a recovery mode and restore itself to the previous version and should boot up as if the update was never done, this can take 10-30 minutes. Note: If the radio will not go into recovery mode, or if the recovery mode never completes then there is something seriously wrong with the radio and it must be repaired or replaced. If this recovery mode results in the radio not powering down when the vehicle is turned off, please pull the fuse for the radio to prevent the radio from killing the battery. The fuse locations are below.

RAM 1500 DT

This fuse is located in the interior fuse box, which is behind the driver's side kick panel. It's Fuse F44, a 20 AMP Yellow Microfuse. Picture of the fusebox and fuse location below the interior power distribution center panel removal.

This is the 1500 DT Fuse Box

RAM Heavy Duty Series (2500, 3500, 4500, etc.)

The fuse is hidden. It's actually below the fuse box in the engine bay. It will be hidden among some harnesses, and it's inside of a closed rubber capsule like the Grand Cherokee further down in this article. It will be a 20 amp yellow micro fuse. In the photo below, the capsule has been opened for better visibility of the fuse itself.

Grand Cherokee 2014-2021

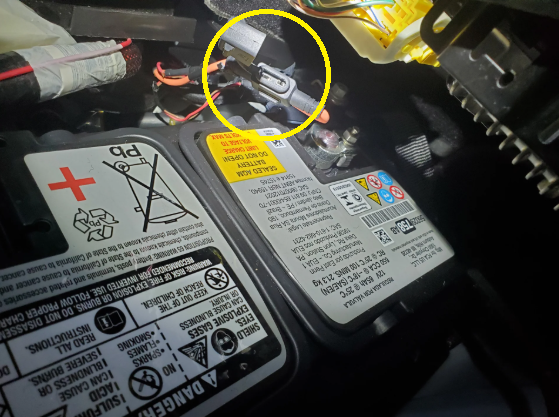

The fuse is hidden as well, and is located by the battery below the front passenger seat, in a rubber capsule with a thick orange wire running from it. 20 Amp Yellow Micro Fuse

Chrysler Pacifica/Voyager 2017-2021

Located in the fuse box in the engine bay, F76, also a 20 amp yellow micro fuse

Step 1: Find your current application version

The current application version can be accessed it by holding down 3 buttons for 5-10 seconds



The buttons are the hard buttons on your dash, Driver's side TEMP UP (Red Arrow) TEMP DOWN (Blue Arrow) and the FRONT DEFROST button.



Click System Information >> Radio Part Information. In there you will see application version, which will be a bit of a script, but the important details are the USA-(2 letters) Then the Number I'm referencing (Such as 21.9, 22.6, 28.3, 34.2, 39.6)

If you have 21.9 you would see "USA-IR21.9....xxxxxxxx" 22.6 would be "USA-IR22.6....xxxxxxxx" etc.

You need to download the next version that is above what your current version is. The radio will not allow you to install an older version, or the same version it's already on.



Download each of these links (Depending on what version you're currently on) to your desktop of your Windows Computer (Mac's unfortunately don't have the correct USB drive format option, you'd need a program to convert the USB drive to FAT32). You can only put one update on the USB drive at a time.



Plug in your USB drive, It's recommended to have 16GB USB drive, most of these updates are around 1GB. However, the early versions, 21.9 and 22.6 have a map package file, which makes the update about 10GB in size. Right click the USB drive and click quick format, and make sure that FAT32 is selected. Proceed to reformat the USB drive each time you complete an update to load a new one on the drive (if you plan on using the same USB drive for all the updates).

Download each of these links to your desktop of your Windows Computer (Mac's unfortunately don't have the correct USB drive format option, you'd need a conversion program on the Mac to convert the USB drive to FAT32). You can only put one update on the USB drive at a time.



Plug in your USB drive, It's recommended to have 16GB USB drive, most of these updates are around 1GB. Right click the USB drive and click quick format, and make sure that FAT32 is selected. Proceed to reformat the USB drive each time you complete an update to load a new one on the drive (if you plan on using the same USB drive for all the updates).

The first updates are vehicle specific. Please DO NOT Install the incorrect update if your current application is below the 21.9 version.

RAM Trucks ONLY

21.10 (Please use at minimum a 16GB USB drive. Just double click the zipped folder to see the contents. You should see two folders called "VP4R_Update" and "Map_Package". Drop those folders onto the blank USB drive)

https://drive.google.com/file/d/16CUV1DC9g-XG0PHfTYPUP8xKvWhBwc_l/view?usp=sharing

Grand Cherokee and Chrysler Pacifica/Voyager ONLY

21.9 (Please use at minimum a 16GB USB drive. Just double click the zipped folder to see the contents. You should see two folders called "VP4R_Update" and "Map_Package". Drop those folders onto the blank USB drive)

https://drive.google.com/file/d/1Z8tAt3D81_KzSFQpAuv76YJVRW-aa9hP/view?usp=sharing

All vehicles will install the next update 28.3.

28.3 (Double click the first folder, and you should see a folder called "VP4R_Update". Drop that folder onto the blank USB drive)

https://drive.google.com/file/d/18tMjXdM2t_yzAYFIfOZcUcLopgn8DePF/view?usp=sharing

The next updates are vehicle specific. So please do not install the incorrect one.

RAM Trucks ONLY

34.2 (Double click the first folder, and you should see a folder called "VP4R_Update". Drop that folder onto the blank USB drive)

https://drive.google.com/file/d/15AwyXbzOKdzIXTmhNyaznnmsC3ijZFvJ/view?usp=sharing

Grand Cherokee ONLY

30.21 (Double click the first folder, and you should see a folder called "VP4R_Update". Drop that folder onto the blank USB drive)

https://drive.google.com/file/d/1nRygUs9TAQaCW1-PTcJrmGVYhP6jg9mt/view?usp=sharing

Pacifica/Voyager ONLY

34.1 (Double click the first folder, and you should see a folder called "VP4R_Update". Drop that folder onto the blank USB drive)

https://drive.google.com/file/d/1S2f1vAjRG5O6mSMFjoDG1gtNYhEsWRdw/view?usp=sharing

Grand Cherokee and Pacifica ONLY

39.5 (This one will only have a folder inside called "VP4R_Update" Just place that folder on the blank USB drive, do not put the whole zipped folder on the drive) After this update finishes, you may see a loading bar on the bottom left part of the screen naming off random applications that you may not have, but it's still firmware for applications that other trim vehicles may have, so please just allow it to finish before you turn the vehicle off.

https://drive.google.com/file/d/1aXMZe7Dxpjbwv-1gGtA02mVAttEpDyR-/view?usp=sharing

RAM Trucks ONLY

39.6 (This one will only have a folder inside called "VP4R_Update" Just place that folder on the blank USB drive, do not put the whole zipped folder on the drive) After this update finishes, you may see a loading bar on the bottom left part of the screen naming off random applications that you may not have, but it's still firmware for applications that other trim vehicles may have, so please just allow it to finish before you turn the vehicle off.

https://drive.google.com/file/d/1V1ueeI43zAQo7oDX68Sxtss4AF69CXmM/view?usp=sharing

ALL VEHICLES Install the final update

40.1 (Same file format as above) This one will also have a loading bar, just wait for it to finish before you turn off the vehicle.

https://drive.google.com/file/d/1WCYbRTEhou_dFjeqHXLq22obnPvNn5qK/view?usp=sharing



At the very end, you should be at USA-SBX-8.4-QR-40.1.0-20220821-Q0J0 as the application version in the Dealer Mode "Radio Part Information".

At the 40.1 update, you can go to www.navigation.com and purchase a map update to update the maps.

If you have any questions or are unsure on how to follow this guide, please call Infotainment.com support and we can assist.
