🔧 Passive Keyless Entry Upgrade – Troubleshooting Guide

⚠️ 1. Door Handle Touch Sensors Not Responding

  • Check for Secure Connections: Confirm that all connectors are fully seated and locked into place.

  • Inspect Door Handle Installation: Ensure that the new door handles are installed correctly and that the touch sensors are not obstructed.

  • Verify Wiring Connections: Ensure that the Sense and Return wires are correctly pinned:

  • 🚙 Ram 1500 DT (2019–2024)

    🚪 Driver-Side Door Pinning

    Pin Assignments:

    • Black Wire (Return):
      ➤ Insert into Pin #17 on the Brown Connector

    • Orange Wire (Sense):
      ➤ Insert into Pin #11 on the White Connector

    🎥 Video Reference: Watch Driver-Side Install


Troubleshooting Door Lock Issues with Passive Entry Kit – 2019–2024 RAM 1500

Issue:

Customers report that using the door lock button makes the vehicle think the keys are left inside, which causes the horn to honk three times. This behavior is due to the absence of a rear passive entry antenna, which limits the system's ability to detect the key fob location accurately.

Confirmed Fix:

The issue is caused by the absence of a rear antenna, which is necessary for full passive entry functionality.

Solution Options:

Option 1: Full Plug & Play Solution (Recommended)

Customers can add the rear antenna using two factory parts:

  • Rear Fascia Wiring Harness – Part #: 68475607AB

  • Passive Entry Antenna – Part #: 52112203AB

🧰 This is a plug & play fix — no splicing or custom wiring needed.

💵 Estimated Cost: $200–$300 (available on eBay)

Option 2: Budget-Friendly DIY Fix

For a more affordable route:

  • Purchase the antenna (52112203AB) alone.

  • Manually pin the antenna into the rear body harness using a compatible connector.

🧷 We have attached a pin location diagram showing where to connect the antenna into the rear harness.

🔧 This requires some wiring knowledge but offers a lower-cost fix.

Conclusion:

If you're experiencing inconsistent door lock/unlock functionality with your passive entry kit, adding a rear antenna resolves the issue. Choose the method that best suits your comfort level and budget.

For further support or to obtain the wiring diagram, please contact our technical support team.

  • 🚪 Passenger-Side Door Pinning

    Pin Assignments:

    • Black Wire (Return):
      ➤ Insert into Pin #17 (last pin position)

    • Orange Wire (Sense):
      ➤ Insert into Pin #16 (next to Pin #17)

    🎥 Video Reference: Watch Passenger-Side Install

    🛻 Ram Heavy Duty (2019–2024)

    🚪 Driver-Side Door Pinning

    Pin Assignments:

    • Brown Wire (Return):
      ➤ Insert into Pin #5D on the Brown Connector

    • Green Wire (Sense):
      ➤ Insert into Pin #4C on the White Connector

    🎥 Video Reference: Watch Driver-Side Install

    🚪 Passenger-Side Door Pinning

    Pin Assignments:

    • Brown Wire (Return):
      ➤ Insert into Pin #14C (last pin to the right on the bottom row)

    • Green Wire (Sense):
      ➤ Insert into Pin #4C (4th pin from either side on the top row)

    🎥 Video Reference: Watch Passenger-Side Install

    📌 General Notes (Ram 1500 DT & Ram Heavy Duty)

    • Ensure all wires are firmly seated and fully locked into the connectors.

    • Use a terminal/pin removal tool for precise and damage-free pin insertion or repositioning.

    • Always verify pin positions against the labeled connector layout (rows/columns) before inserting.

    • Confirm the Passive Entry door handles are OEM-compatible with your vehicle model and trim.

    • If Passive Entry does not function after installation:

      • Double-check wire colors and pin locations.

      • Inspect connectors for bent or unseated pins.

      • Confirm wire continuity between the harness and door module.


⚠️ 2. Key Fob Buttons Not Working After Installation

  • Verify Programming: Ensure the vehicle’s Body Control Module (BCM) is properly programmed for Passive Entry by using the provided OBD Genie programmer. This process adds the correct Sales Code GXD to enable the feature—verify successful programming before testing the system.

  • Check Fob Battery: Confirm that the key fob battery is functioning and properly installed.

  • Inspect Antenna Connections: Ensure that the Passive Entry antenna is connected and positioned correctly.

⚠️ 3. Intermittent Functionality or Range Issues

  • Check Antenna Placement: Verify that the Passive Entry antenna is installed in the recommended location and is not obstructed.

  • Inspect Wiring for Damage: Examine all wiring for signs of damage or wear that could affect signal transmission.

  • Perform a CAN-Bus Reset:

    1. Disconnect the negative terminal(s) from the vehicle battery.

    2. Wait 15–20 minutes.

    3. Reconnect the battery terminal(s) and test the system.

⚠️ 4. Door Not Unlocking or Locking with Touch

  • Ensure Proper Handle Installation: Confirm that the door handles are installed correctly and that the mechanical components are functioning.

  • Verify Sensor Functionality: Test the touch sensors on the door handles to ensure they are responsive.

  • Check for Obstructions: Ensure that there are no obstructions or debris preventing the door handle sensors from detecting touch.

⚠️ 5. System Not Recognizing Key Fob

  • Check for Interference: Ensure that there are no devices nearby causing interference with the key fob signal.

  • Inspect Antenna and Module Connections: Verify that all connections to the Passive Entry module and antenna are secure.

⚠️ 6. Key Fob Detected Inside After Locking with Door Panel Button

Issue description: Customers have reported that after installing Infotainment.com's Passive Entry Kit on RAM 1500 vehicles, the vehicle still detects the key fob inside when using the interior door lock button—even if the fob is actually outside the vehicle.

Check antenna connection:

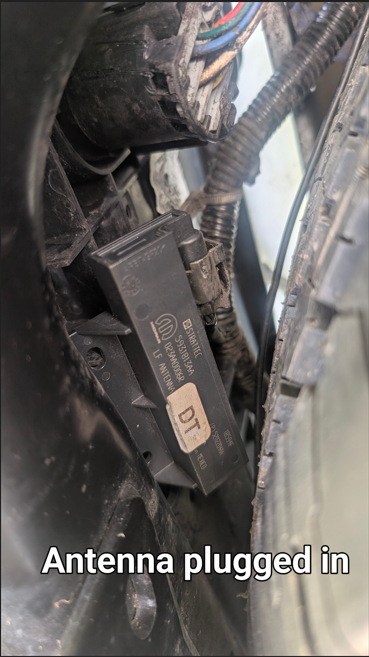

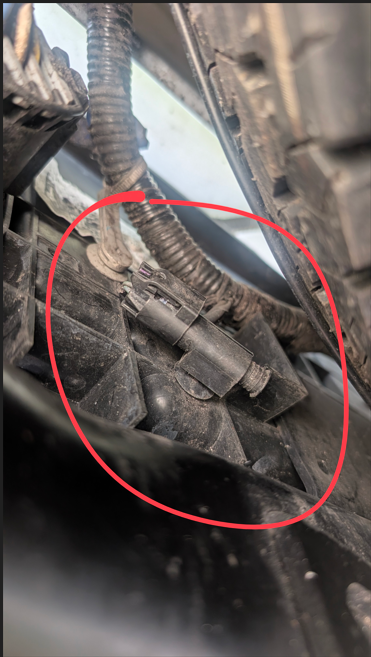

Verify the connection of the Passive Entry antenna located behind the rear license plate. A loose or disconnected antenna can cause the system to misread the fob location.

Next steps:
Review the reference images provided to confirm proper installation.




🛠️ Additional Tips

  • Handle Installation: When installing new door handles, ensure that all mechanical linkages are properly connected and that the handles move freely.

  • Wire Routing: Route all wiring away from moving parts and secure them to prevent damage.

  • Use the provided OBD Genie programmer to activate the Passive Entry system.

For visual guidance, refer to the installation video:

▶️ Installation Video Ram 1500 DT
