🛠️2019-2024 Ram 1500 DT Bind Spot Monitoring BLIS Connection & Troubleshooting Guide

For 2019–2024 Ram 1500  DT Trucks
Provided by Infotainment.com

🔌 Wiring & Power Connection

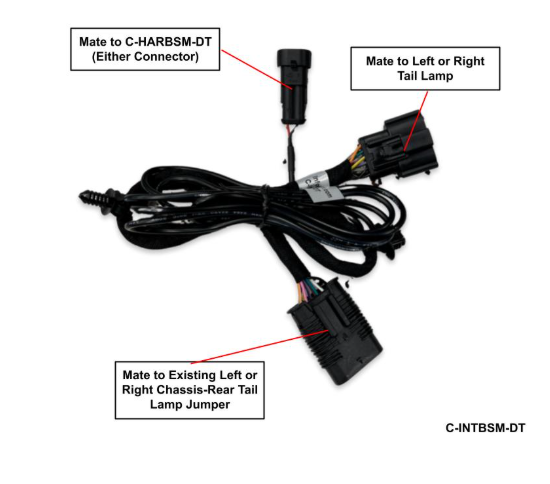

🚪 Body Harness Routing

1. Drill-Free Routing
   Route the harness through the emergency brake line grommet (driver side firewall).
   ➤ Tip: Use a sharp knife to make a small slit—don’t remove the grommet.

2. Inside the Cab
   Locate the routed harness under the dash.

3. Lower Dash Trim Removal
   ➤ Tool-Free: Pull up and back — held in by clips.

4. Power Connection
   Connect the harness to a star connector under the steering column (driver side).

🔧 Programming with Genie + Bypass

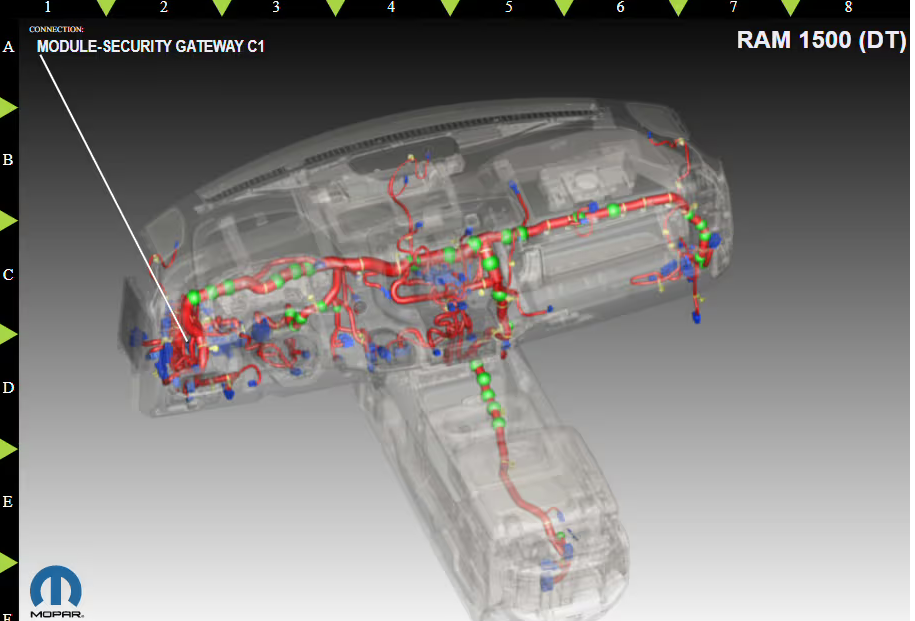

🧩 Security Gateway Bypass (2018+)

• Bypass Location video


•

• Install bypass plug to allow Genie programming

🤖 Genie Programmer Steps

1. Turn key to RUN (engine OFF)

2. Wait 60 seconds before plugging in

3. Plug in Genie — LED will flash blue

4. Programming completes when LED turns green (1–3 mins)

5. Remove Genie and let vehicle sleep for 10+ minutes

6. Test BSM, mirror fold, and door functions

🚪 Door Panel & Mirror Installation

🧰 Tools Required

• Flashlight

• Flathead screwdriver

• Pry tool

• 6mm & 10mm socket/wrench

🚙 Driver Side

1. Remove 3x 10mm bolts (under trim caps)

2. Pry up door control panel, unplug harness

3. Pull off door panel (careful of handle cable & lock post)

4. Replace door module with new “L” module (6mm bolts)
   ➤ Take a pic of original wiring for reference

5. Remove old mirror:

   • Pry off corner trim

   • Unscrew 4x 10mm bolts

6. Install new mirror:

   • Feed new harness

   • Secure all 4 bolts

   • Clip harness to match factory routing

7. Reconnect harnesses, door lock, and controls

8. Reinstall panel, 10mm bolts, and trim

9. Install new driver controls

🧑‍🤝‍🧑 Passenger Side

• Follow same process

• Do not replace passenger door module

• Reuse original module

📘 Before You Test

✅ Confirm:

• Mirror harnesses clicked into door modules

• Controls respond to folding/movement

• Tail lamps with BSM sensors are installed

• Genie programming is complete

🧠 Product Notes & Compatibility

• Auto-dim requires factory rearview mirror

• Manual lock/window trucks are not supported

• 360° camera system is not compatible

• Some kits ship in multiple packages

📦 Kit Contents (varies by order)

• Driver + passenger power folding mirrors

• Driver + passenger door modules

• New driver controls

🪞 Mirror Styles

All mirrors include:

• Power Folding

• Turn Signals

• Puddle Light

• Heated Glass

• BSM Indicator

• Driver Auto-Dim (if equipped)

Styles:

• 6x9 Standard (Black / Chrome)

• 7x11 Tow Mirrors (Black / Chrome)

💡 Tail Lamp Options

• Red BSM

• Black BSM (for Sport trim)
  ✔ All feature LED Signature Lighting + BSM Sensors

🎥 Guides & Resources

• 📄 PDF Install Guide (Infotainment.com)

• 🎞 YouTube Install Video

• 🎞 Mopar BSM Feature Overview

🚨 Troubleshooting Section

❌ Genie Not Programming

🔄 Solutions:

• Wait 60 seconds in RUN before plugging Genie

• Confirm SGW bypass is installed

• Let truck sleep 10+ mins, retry Genie

❌ Blind Spot Monitoring Not Working

📌 Checklist:

• Use correct LED tail lamps with BSM

• Inspect mirror harness for seating or damage

• Try a battery reset

• Re-run Genie programming

• Check fuses for lamps/modules

❌ Power-Folding Mirrors Unresponsive

🔧 Steps:

• Confirm driver door module is “L” side

• Ensure mirror harnesses are fully seated

• Test switch operation

• Check related fuses

• Swap mirrors left-right to isolate fault

❌ No Door Control Response

🧪 Checks:

• Control harnesses plugged in tight

• Inspect pins for bends

• Reconnect original door module to test

• Ensure module is year-matched to truck

❌ BSM Light Flickers or Constant

🔍 Checks:

• Mirror harness grounding issues

• Tail lamps not grounded properly

• Genie reprogram needed
